COMBO

2-in-1 dot peen marking station*: bench and portable configuration

Don’t choose between reliability and versatility

*Patented and protected software

Download Documentation

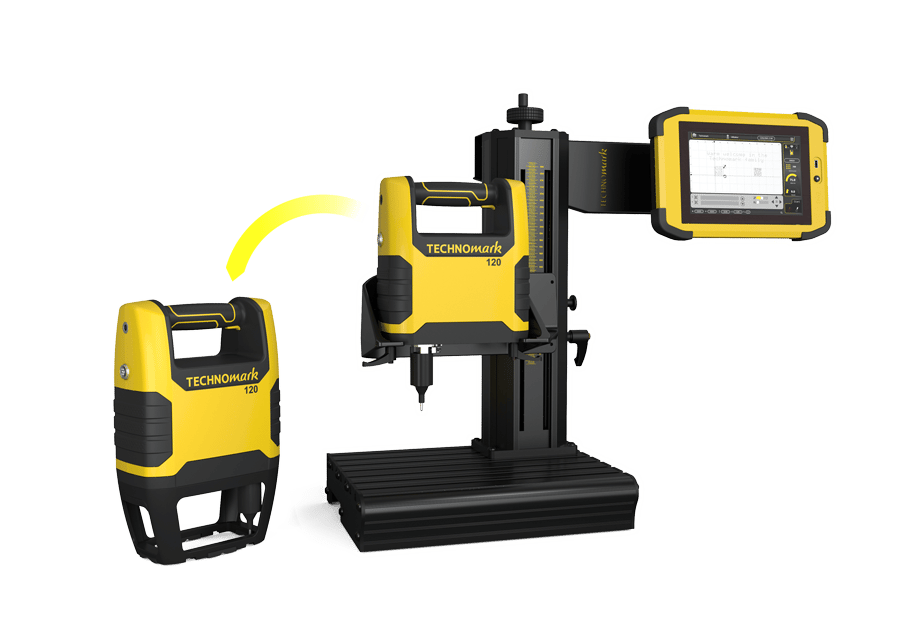

The Combo dot peen marking station has been designed for ultra-versatile use. This innovative and complete equipment allows you to go from a bench top marking solution to a portable and wireless solution in less than 10 seconds without tools.
Why COMBO is made for you?
2 in 1 equipment

2 in 1 equipment

The Combo marking solution has taken the versatility of dot peen to the next level. Combo combines a portable and a bench mode in one machine, with a change of configuration in less than 10 seconds without tools.

Bench mode: fixing the marking head to an easily adjustable column. Ideal for small to medium sized parts.

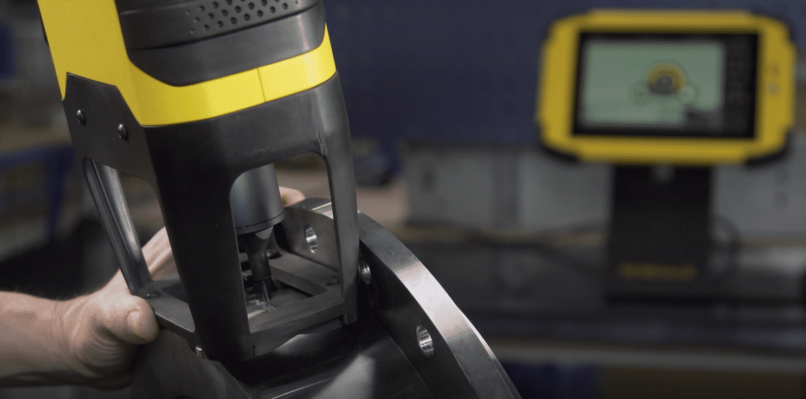

Portable mode: operator travels with the wireless marking head within a 10 metre radius of the marking station. Ideal for medium to large, heavy or hard to reach parts.

.

technomark-tout-type-piece
PARTS OF ALL SIZES
Icon label
SMALL AND MEDIUM SIZED SERIES
technomark-intelligence-driving-impact
INTELLIGENT DRIVING IMPACT (IDI)
utilisation-360deg-technomark-marking
360° USE
Connect.series Combo
MULTIPLE ACCESSORIES
Picto-eclairage-e1633082667656
LIGHTING OF THE MARKING AREA
Logo_connect.series_fondgris
The versatility of Dot Peen marking
Easy-120_Easy-60

Fast and flexible
Change of configuration in 10 seconds without tools

Lithium ion battery
High performance NMC type

3 consumption modes :
100% electric
100% battery
Plug-in hybrid

Optimised ergonomics
Lightweight and easy to install marking head
Quick Shift function for quick height adjustment
Easy to grip thanks to its in-line handle

5 in 1 support foot
Marking flat parts,
Magnetic support,
Non-slip,
Marking of cylinders,
Positioning aid



Easy-Controller

intelligent and intuitive software

  • Preventive maintenance
  • Dashboard customisation
  • Marking in 3 clicks
  • Marking information in real time
  • Access management and connection of marking heads by RFID tagging
  • multilingual software
  • Easyshift function for marking positioning assitence

Applications and Technical Specfications


Head
Distance between head and controller10 metres
Marking window120x60mm
Number of marking speeds3 speeds
Number of marking forces11 forces
Lithium ion battery22V
Max marking height290mm
Weight of head (with foot)3,1 kg
plastic-marking-dot-peen-marking-time stamp

4 configurations according to your needs

EASY_support-light_avec-machine_RVB-copie

Light

Light and compact controller holder


EASY_support-advanced_avec-machine_RVB-copie-1

Advanced

Bench top parking and charging station

Support-upgraded-250x250 (1)

Upgraded

Controller holder fixed on the column

Support-full_avec-machine_RVB-copie-200x250

Full

Complete solution integrated on trolley
