Graphix.series

GRAPHIX

All-in-one laser station* with on-board camera, material database and multi-level function

*Developed by TECHNOMARK

The new Graphix.series all-in-one station is designed around the user experience. The marking head with on-board camera and intelligent software allows any operator to mark with ease, regardless of their experience: novice or expert.
Why GRAPHIX is made for you?

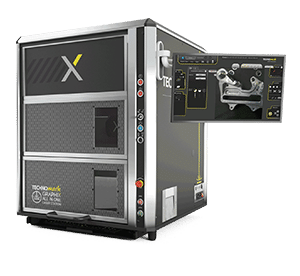

Smart View Function

Smart View function

The Smart View function is a revolution in this new generation of laser
stations
. The camera integrated in the marking head allows you to
view the workpiece directly on the screen. You can now
place and view your marking directly on the part. This makes
marking set-up faster and reduces error rate.

Graphix.series
FIBER LASER TECHNOLOGY
Graphix.series
SMALL TO MEDIUM SIZED PARTS
Graphix.series
SMALL TO LARGE SERIES
Graphix.series
SEVERAL WINDOW SIZES
Graphix.series
LIGHTING OF THE MARKING AREA
Graphix.series
WIDE RANGE OF ACCESSORIES

Customization

The Graphix laser marking station has been designed to meet the many needs of our customers. Offering you a personalized service is very important to us in order to guarantee your complete satisfaction with our marking solutions.

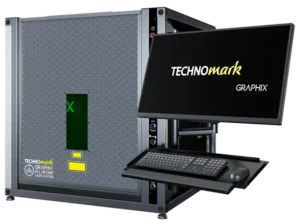

Graphix.series

All-in-one laser station for accessible marking to all

Graphix.series

Assisted door opening
with two positions for easy loading of parts

Electric column
Digital control of the z-axis with a useful stroke of 400mm

Fiber laser head
High performance with on-board camera

Multiple options
Side openings (single and double), rotary axis, retractable drawer and fume extractor

Graphix.series

EASY TO USE AND OPTIMIZED ERGONOMICS

  • Material database
  • Multi-level marking
  • Marking in 3 clicks
  • Production and creation mode
  • Multilingual software
  • Preview of the marking on the part

Applications and Technical Specifications


Laser


Marking windows


100x100mm and 140x140mm


Scanning speed


12m/s


Type of laser


Class 1 fibre laser in station configuration


Available powers


20w, 30w and 50w


Graphix.series
