GRAPHIX e-series
Class 4 inline series: The integrated laser solution

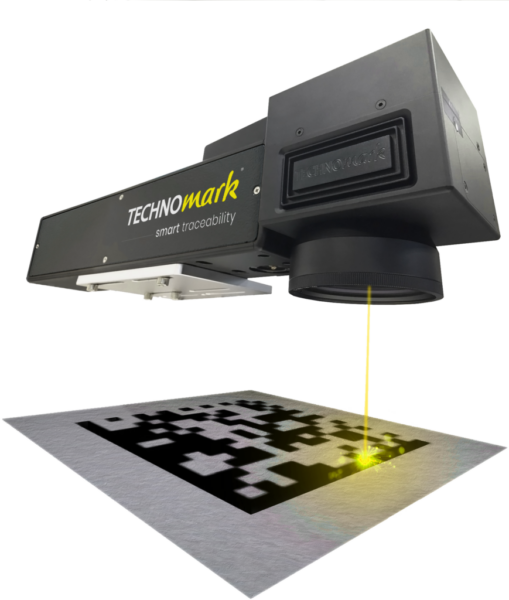

Our newest Class IV laser solution (integrated into the production line, or in customized workstations) is a great alternative when you have large parts that won’t fit inside an enclosure, or if you simply want to mark large series on a production line.
Why Graphix e-series is made for you?
The new Graphix e-series offers 1D & 2D code marking (DM, QR), with reverse marking effect and quiet zone management. The fiber laser marking system offers marking delay management to compensate effects of the laser software.
- All-in-one PC (Short start-up time, Intel Core i3 processor, 4GB of RAM, 64-bit operating system, Windows 10 Pro – allows easy interface, flexibility and is supported with regular updates)
- File types supported: dwg, dxf, AI, bmp, tif, jpg
- The marking system can print alphanumeric, logo, shapes, linear and radial text
- The laser beam has a 2mm tolerances and is able to adjust for part tolerances and minor variations in height
Hardware
- Designed to reduce part stress
- Reliable positioning of Beam 2
- The main laser source cable is protected from stress, abrasion and distortion
For Inline and Customized Use

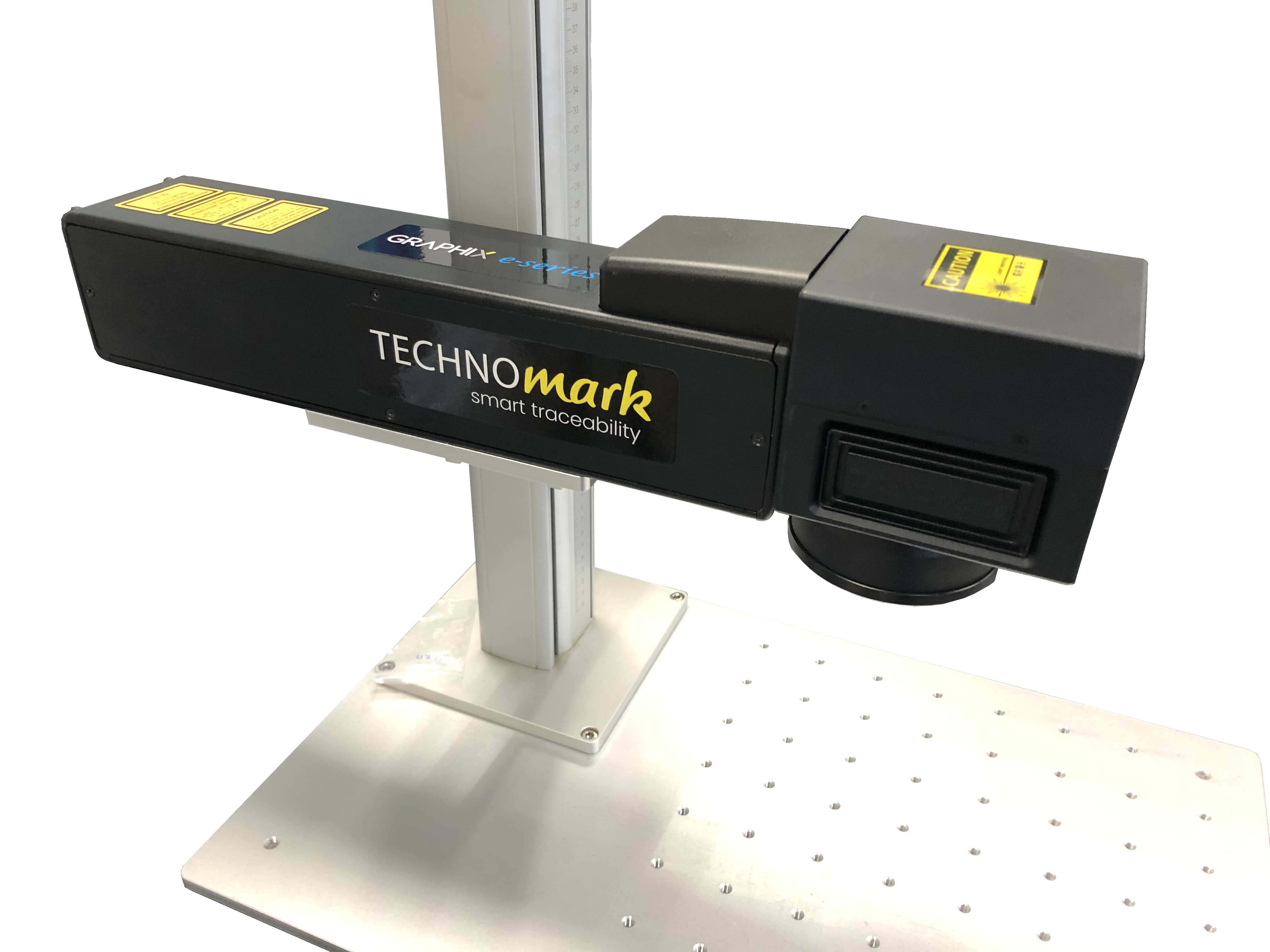

The integrated laser solution has been designed with a powerful interface for various ways to control signals and content input. It is highly versatile and easy to adapt to your usage, from a bench column to your customized product line setup. The Graphix e-seres is computer-embedded, therefore no extra laptop is needed.
More About Integrated Laser Solutions
All-in-one laser marking station that everyone can use
High marking quality and repeatability
Our test reports guarantee the best cycle time/quality ratio. High-quality manufacturing ensures long-term use and reliability.
Powerful communication interface
The PLC communication interface adopts IO&TCP/IP, 1D or 2D code reading data input, and Excel file import.
Technomark professionally guides and supports your project build
Integration, product acceptance, and other technical support.
Accessories needed
- Different powers (20W, 30W, 50W and 100W)
- Different marking windows
- Different cable lengths from 1.9m to 5m
Powerful Embedded
The Graphix e-series integrated laser offers reliability and freedom, including the following features:
- Supports multiple languages: English, Chinese, German, Japanese, Polish, Portuguese, Turkish, Vietnamese
- This marking system is available in 20W, 30W, 50W & custom 100W and comes with a built-in PC (no need for additional hardware).
- The Graphix e-Series is a high-performance and quality marking option with an integrated x4 cooling fan that is easy to clean.
Expertise in 1D/2D Code Marking
The Graphix e-series provides accuracy and repeatability of marking over time. The fiber laser marking system software allows for customization of marking settings to provide optimal cycle time and quality ratio.
2D Code Pattern Selection
Precision is key for optimal marking with this fiber laser marking system. Settings include:
- Reverse contrast
- Bidirectional marking
- Quiet zone setting
- Marking speed selection
- Marking delay settings
- Pocketing effect
Applications and Technical Specifications
| Screen | 21.5-inch integrated station |
Connectivity | 1 Ethernet port and 3 USB ports |
Dimensions | L: 800mm, H: 985mm, W: 755mm |
| Load Capacity | L: 500mm, H: 400mm, W: 500mm |
| Communication Interfaces | Ethernet, IO Port, USB |
